STWI035WT-01

$118.00 $108.00

STONE intelligent touch screen display module of the whole industry

Customized services, please contact us!
(Bluetooth, network port, wifi, memory expansion)

Clear

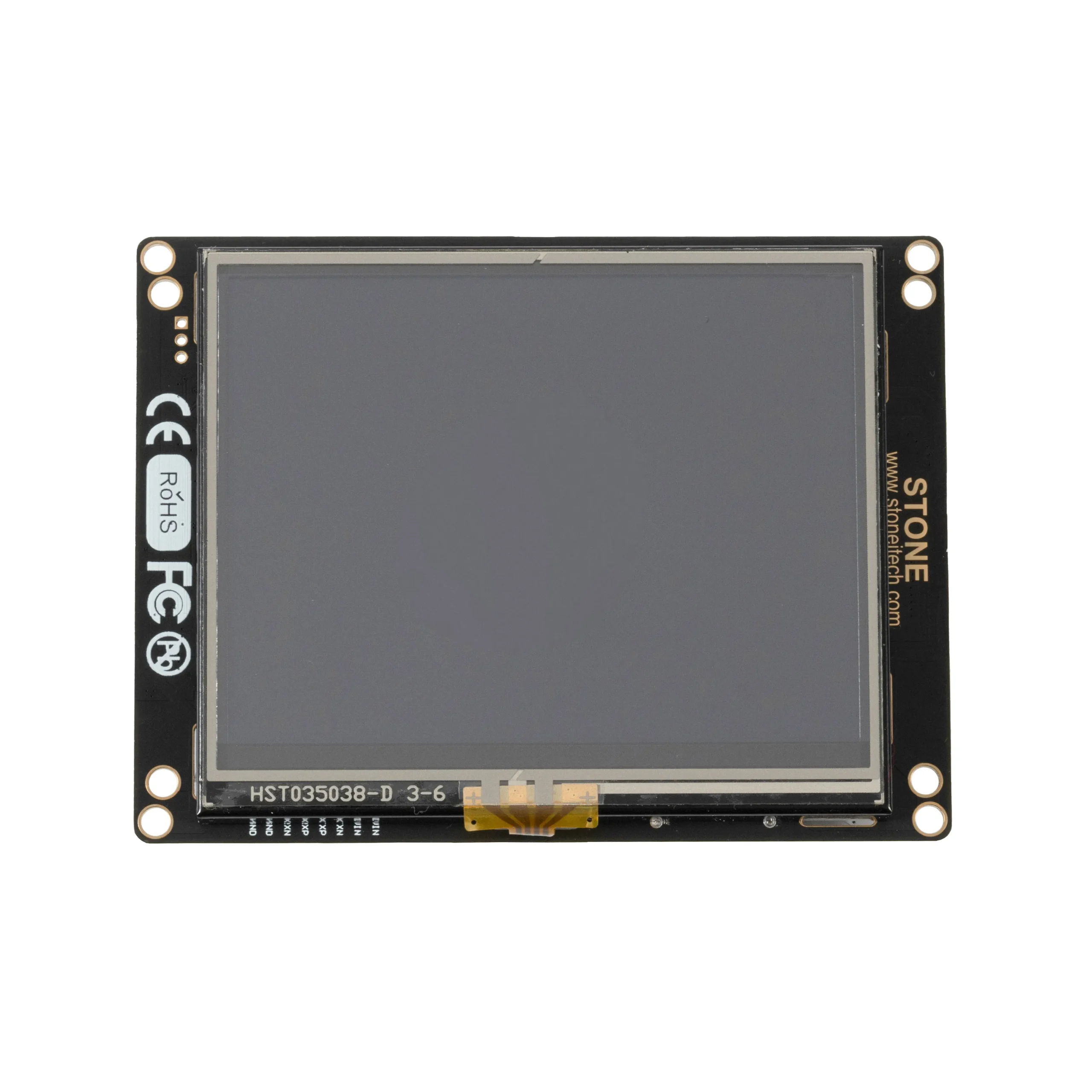

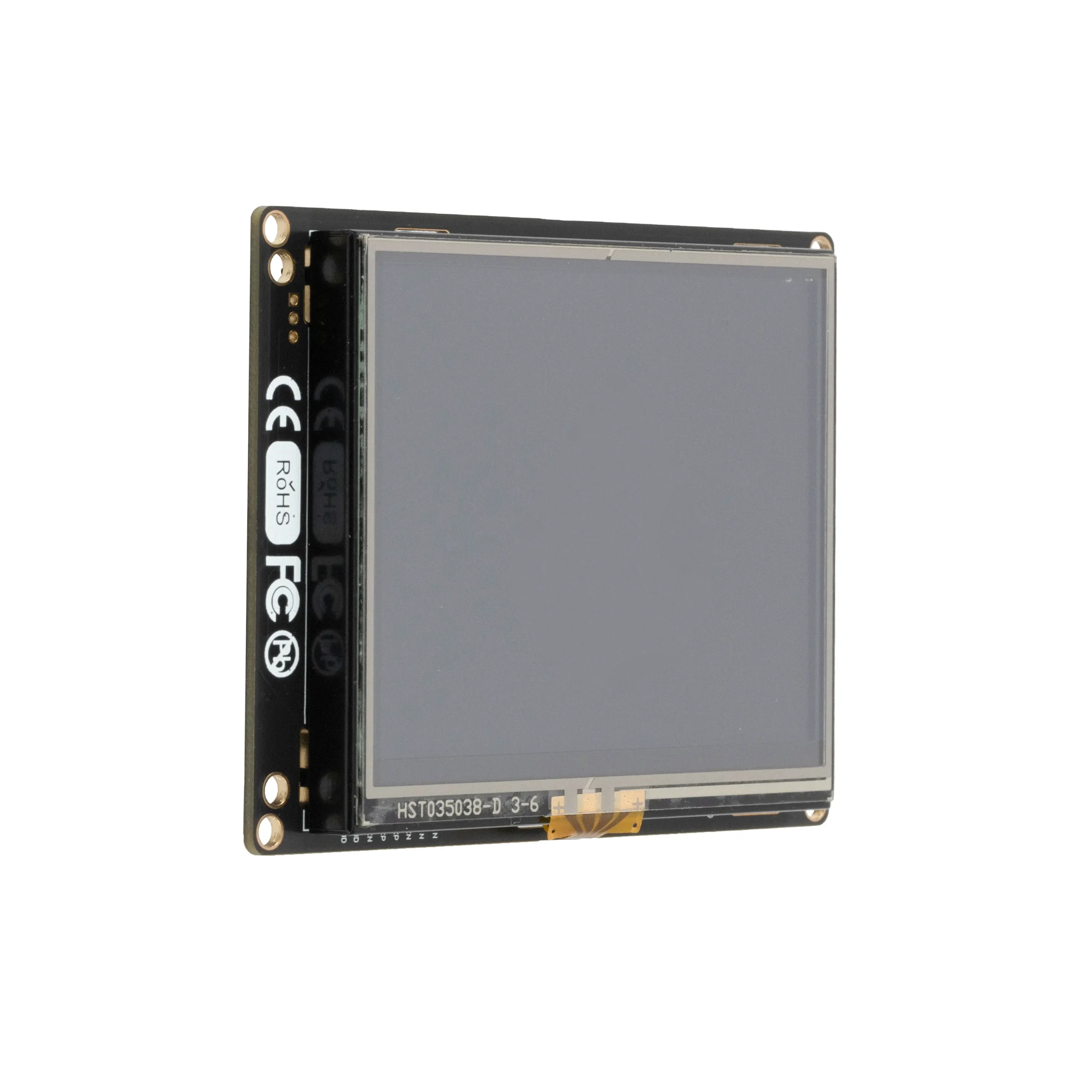

STONE 3.5 inches Intelligent TFT LCD Module

STWI035WT-01details

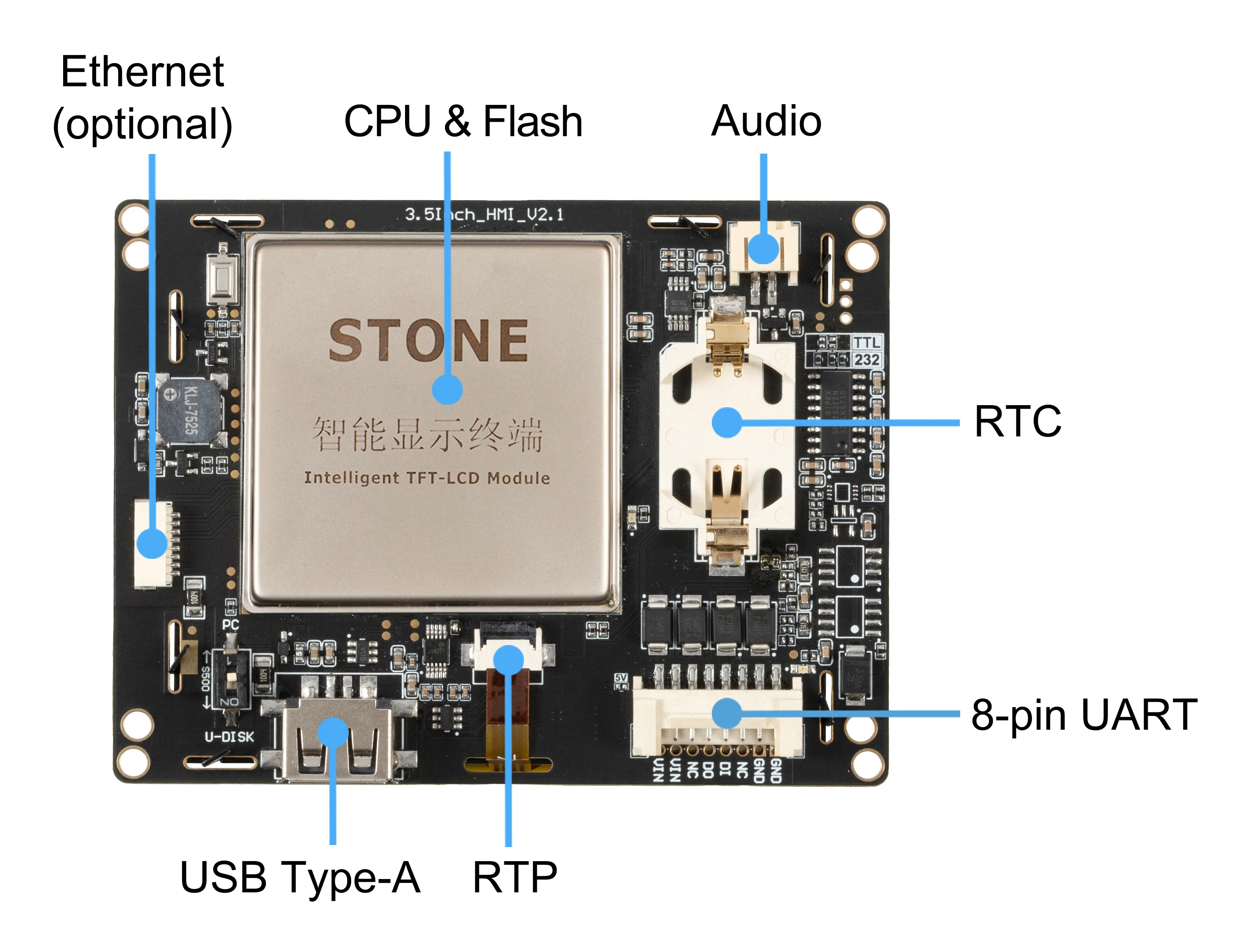

LAN-interface LAN interface:


Allows network data communication, making the topology of the network very flexible

wifi Bluetooth:


For wireless communication, eliminating tedious network wiring

wifi-Bluetooth
CPU-and-Flash CPU and Flash:


1GHz Cortex-A8 standard 256MB, expandable 1GB or 2GB

Audio interface:


External audio playback, support 720P 30Hz high frame rate video / WAV lossless audio playback

stone-Audio-interface-stone
stone-UART-interface-tft-lcd-stone UART interface:


Serial communication, support RS232/RS485/RS422 interface

USB interface:


Plug and play, when the external device, plug the USB can be used

stone-USB-interface-stone



STWI035WT-01



STONE Designer(Free GUI Designer Software)



STONE-Designer-Free-GUI-Designer-Software

» Drag-and-drop components with rich property

» PNG/BMP/JPG/GIF/SVG image format support

   (alpha channel, transparency support)

» Simulation and debugging of HMI projects

» Cloud support (remote updates, remote upgrades)

                  » Vector fonts and text styles

                  » Generic character encoding, command control

                      using JSON code and HEX code

                  » ASCII-based control logic and commands

                  » Media resource support





Drag and drop components





Simple and fast component functions


1. text  2. scrolling text  3. numbers  4. buttons 5. progress bar 6. images 7. cropping 8. meters 9. waveforms 10. image switching 11. keyboard 12. progress bar 13. slider 14. clock 15. USB download 16. video 17. audio, etc.





Component Property Settings

The component property settings provide you with a wealth of design options.

Example:
Value property settings for the slider component slider1



Component-property-settings



Fonts-and-text-styles



Custom font styles

The font creation component can customize the value of any text property.

Example:
Font color: #444444, type: framd, size: 18, position: centered on x-axis, centered on y-axis



Support for multimedia materials such as images, fonts, videos, and audio.


Easily add audio, video, and animation resources to your HMI projects. Edit the properties of these resources to achieve the HMI video presentation you want.



play-the-video



stone-Simulation-Debugging





Simulation Debugging


You can debug your HMI project at any time, even without the STONE Display. The command input area allows you to send any STONE command to check the system feedback and HMI interaction.





ASCII-based control logic
and instruction set

Simple ASCII text-based commands will greatly reduce your HMI project development effort.

Example:
Set text:
ST<{“cmd_code”: “set_text”, “type”: “label”, “widget”: “label1”, “text”: “Hello STONE”}>ET
Get the text:
ST<{“cmd_code”: “get_text”, “type”: “mledit”, “widget”: “mledit”}>ET
“set_text” represents the command function code
“type”: “label” means the type of the control is label
“widget”:” label1″ means the actual name of the control is label1
“text”:” Hello STONE” means that the text is Hello STONE





ASCII-based-control-logic

Sub-black advanced motherboard


PCB thickness and color: thickness 2.0mm more reliable,
advanced sunken gold process, in line with ROHS, industrial motherboard level materials.Sub-black-advanced-motherboard

STONE Designer is compatible
with multiple operating systems


Support cross-platform, support Windows, macOS, Linux operating systems.

STONE-Designer-is-compatible





Working temperature:
industrial-grade -30 ° C / +80 ° C


High strength to adapt to the environment,
-30° low-temperature normal operation,
80° high-temperature normal operation
high strength to adapt to the working environment
so that you work production worry-free.

High-strength-to-adapt-to-the-environment





HD display fine natural


5 inch LCD Display Module screen adopts the original screen imported from Qunar.
Color 18 bit (262K), TTF format vector font,
saturated color Even display brightness, fine screen
To present you with a higher quality visual experience.

HD-display-fine-natural



operating principle

STONE Smart TFT-LCD module communicates with the customer’s MCU/CPU/FPGA/PLC.
It communicates with the customer’s MCU/CPU/FPGA/PLC through commands (JSON commands and HEX codes),
and the MCU will control the work of its connected devices according to the commands received.

stone-designer-operating-principle-stone

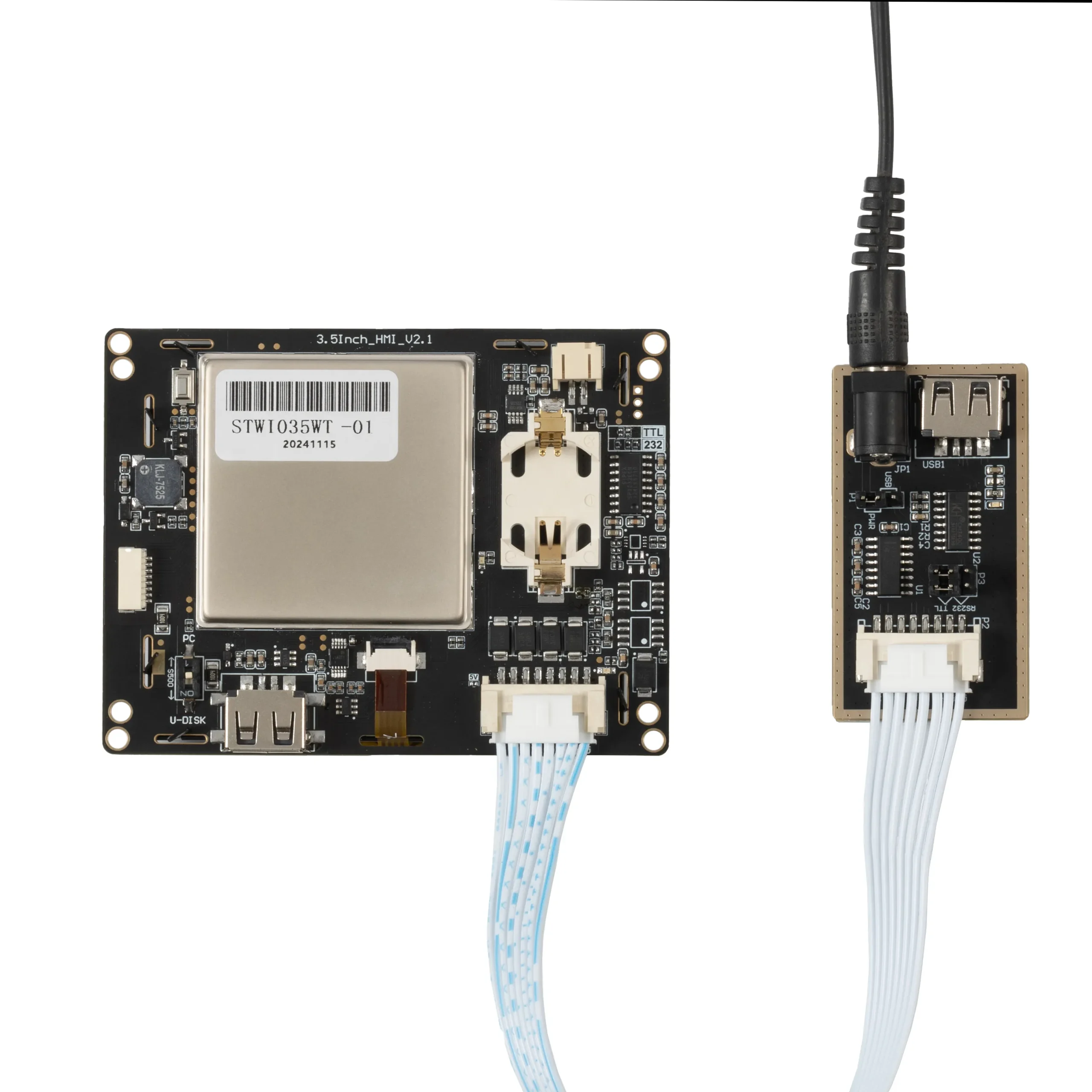

Accessories

stone-accessories-stone



Certification and documentation

  • Data Sheet
  • Instruction Set
  • Editor’s Guide
  • CE Certification
  • ROHS certification



STONE Technical Support



Tutorials



Arduino Tutorials

Project Name Language Update Date

Intelligent Access Control_800x480

C 2022-3-17

Mechanical_800x480

C 2022-3-17

Treadmill_800x480

C 2022-3-17

Cosmetic Instrument_480x640

  2022-3-30

Smart Refrigerator_480x800

  2022-3-20

Subway Ticket System_1024x600

  2022-3-20



Esp32 Tutorials

Project Name Language Update Date

Intelligent Access Control

Micro Python 2022-2-9

Intelligent Storage Cabinet_800x480

Micro Python 2022-2-9

Smart Home_800x480

Micro Python 2022-2-9

Cosmetic Instrument_480x640

  2022-3-20

Smart Refrigerator_480x800

  2022-3-20

Subway Ticket System_1024x600

  2022-3-20



Raspberry Pi Tutorials

Project Name Language Update Date

Intelligent Charging Pile_1024x600

Micro Python 2022-2-9

Intelligent Printer_640x480

Micro Python 2022-2-9

Motor Board_800x480

c++ 2022-2-9
Parking Management System_1024x600 Micro Python 2022-2-9

Cosmetic Instrument_480x640

  2022-3-20
Smart Refrigerator_480x800   2022-3-20

Subway Ticket System_1024x600

  2022-3-20



STM32 Tutorials

Project Name Language Update Date

Photovoltaic Inverter_1024x600

C 2022-2-9

Cosmetic Instrument_480x640

2022-2-9

Smart Refrigerator_480x800

2022-2-9

Subway Ticket System_1024x600

  2022-3-20
Model

STWI035WT-01

Size

3.5 inch

Resolution

480×RGB×272

Pixel Spacing

0.066(W) × 0.198(H) mm

Color

262,144 colors (18 bit)

Viewing Area

95.04(W) × 53.856(H) mm

Display Dimension

97.1mm× 56mm

Overall Dimension

121.9mm×74.7 mm×13.8 mm(T)
(Standard type)
121.9mm×74.7 mm× 23.8mm(T)
(with Ethernet port)

Backlight Type

LED

Brightness

500cd/m2

Contrast

500:1

Backlight life

30,000 hours

Viewing Angle

70°/70°/50°/70°(L/R/U/D)

TFT Panel

A Class Industry Panel

Touch Screen

4 Wire Resistance Touch /Capacitive Touch
/ Without Touch Screen

Screen Mode

Digital

CPU

Cortex A8

Refresh Rate

1GHz

Max Frame rate

60 FPS

Flash Memory

Standard 256MB, Extension 1GB or 2GB

Memory Amount for Image

According to the capability of the image, Suggest "PNG, BMP, JPG, SVG, GIF"
format
